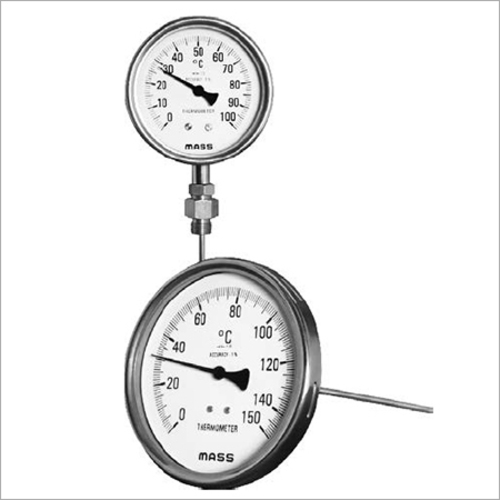

Stainless Steel Bimetal Thermometer

Stainless Steel Bimetal Thermometer
Stainless Steel Bimetal Thermometer
Product Code : BMT
Brand Name : G. M . E
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

We are a reputed trader of All Stainless Steel Bimetal Thermometer to our widely scattered clients. It is available in nominal size 63mm, 100 mm or 150 mm. It finds application in chemical and petrochemical industry, machine and apparatus construction, food and beverage industry, pulp and paper industry. All Stainless Steel Bimetal Thermometer has gained us huge appreciation in the form of highly increasing demands among our competitors. Clients can avail it at highly cost- effective prices in the market.

Features:

  • Rugged stainless steel construction
  • Fast response
  • Protection IP65
  • External zero adjustment
  • Dry or liquid filled
  • Silicone damped coil

Accuracy:

Class 1.6 (1.6%)

Nominal size : 63mm, 100 mm or 150 mm
Accuracy: Class 1.6 (1.6%)

Features :
  • Rugged stainless steel construction
  • Fast response
  • Protection IP65
  • External zero adjustment
  • Dry or liquid filled
  • Silicone damped coil

Ranges :

  • -50 ... 50 °C up to 0 ... 400 °C
  • -80 ... 120 °F up to 200 ... 700 °F

Applications :

  • Chemical and petrochemical industry
  • Machine and apparatus construction
  • Food and beverage industry
  • Pulp and paper industry

Technical specification

BMT

Dial size

63 mm

100 mm

150 mm

Construction

Cylindrical case with bayonet ring

Measuring principle
Range in °C
Temperature limits for ranges
Max. process over temperature
Stem
Diameter
Length

Bimetallic coil
0/50 0/60 0/80 0/100 0/120 0/150 0/160 0/200 0/250 0/300 0/400
-10/50 -10/110 -20/40 -20/60 -20/180 -30/50 -30/70 -40/40 -40/60 -40/160
Ranges in °F and dual scales on request
< 120°C     >120 °C and < 290°C   290 °C
                              100 % of span                 50 % of span          max. 425 °C for continuous service
6 mm, 8 mm, 10 mm, 12 mm
63 ... 1000 mm, minimum length depends on range, (refer chart)

Process connection

Plain
1/2” 3/4” 1” BSP / NPT (M) fixed, adjustable or with swivel nut

Connection location

Back, lower and every angle (rotatable)

Material
Connection
Stem
Case/ring
Window
Dial
Pointer

Stainless steel 316
Stainless steel 316L
Stainless steel 304, optional 316L
Instrument glass, optional laminated safety glass
Aluminum, black markings on white background
Aluminum, black

Accuracy

Class 1.6 (1.6%) optional class 1 (1%)

Protection

IP65

Filling liquids

Silicone, not for lower connection, maximum range up to 300 °C (ambient temperature maximum 65 °C)

Accessories, options

Thermowells, dual scale
