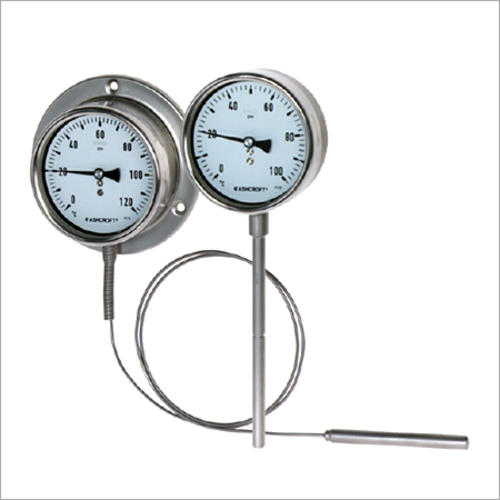

SS Gas Actuated Thermometer

SS Gas Actuated Thermometer
SS Gas Actuated Thermometer
Product Code : S5500
Brand Name : G. M . E
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Minimum Order Quantity
Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque, Others
  • Delivery Time
  • 2 Week
  • Packaging Details
  • corrugated box
  • Main Domestic Market
  • Maharashtra
Product Description

All Stainless Steel Gas Actuated Thermometer which we trade is made according EN 13190 in nominal size 100 mm or 160 mm. It can be availed with or without capillary/ contacts. It is used in in chemical and petrochemical industry, machine and apparatus construction, food and beverage industry, pulp and paper industry, etc. All Stainless Steel Gas Actuated Thermometer stands high on performance, accuracy, durability and has a long functional life. Clients can avail it from us at highly reasonable prices.

Features:

  • Rugged stainless steel construction
  • Fast response
  • Protection IP65
  • High repeatability and small hysteresis
  • Dry or liquid filled
  • Rigid stem or bulb with capillary

Ranges:

  • -50 ... 50°C up to 0 ... 400°C
  • -60 ... 120 °F up to 50 ... 750°F

Accuracy:

  • Class 1 dry / Class 2 liquid filled

Applications :

  • Chemical and petrochemical industry
  • Machine and apparatus construction
  • Food and beverage industry
  • Pulp and paper industry

Technical specification

Rigid Stem

With capillary

Dial size in mm

100

160

100

160

Construction

Cylindrical case with bayonet ring (blow out at back is standard with ATEX)

Measuring principle
Range in °C




Over temperature limit

Inert gas actuated
0/60 0/80 0/100 0/120 0/160 0/200 0/250 0/300 0/400 0/500 0/700 0/800
-10/50 -10/110 -20/40 -20/100 -20/120 -20/180 -30/50
-30/70 -30/170 -40/40
-40/60 -40/160 -50/50
-60/40
-80/40 -100/50 -120/40 -200/50
Ranges in °F and dual scales on request
Max. 130 % F.S. but max. 800 °C, optional 210 % F.S. but max. 800 °C

Stem or bulb diameter

6 mm, 8 mm, 9 mm, 10 mm, others on request

Lengths

55 ... 1000 mm, other length on request, min. length depends on bulb and range

Capillary length

N.A.

Max. 100 m

Process connection

Plain
G ½ B male, G ¾ B male, G 1 B male according ISO 228-1,
½ NPT male, ¾ NPT male, 1 NPT male according ANSI/ASME B1.20.1,
M20x1,5 male, M24x1,5 male, M27x2 male according ISO 68-1,
Others on request
Fixed, adjustable union or with swivel nut

Connection location

Back, lower, knee joint bendable (360°)

Material
Connection
Stem
Case/ring
Capillary
Armor

Window
Dial
Pointer
Movement

Stainless steel 304 (1.4301)
Stainless steel 321 (1.4541)
Stainless steel 304 (1.4301), optional 316 (1.4401)


Instrument glass, optional laminated safety glass (standard with ATEX) or acrylic glass
Aluminum, black markings on white background
Aluminum, black, optional micrometer pointer or maximum pointer
Stainless steel 304/303 (1.4301/1.4305)

Stainless steel 321 (1.4541)
Flexible, 304 (1.4301), or 316 (1.4401)
optional PVC covered


Accuracy

Class 1 (dry) , Class 2 (liquid filled) according to EN 13190

Zero adjustment

±6 % externally

Conformity according to RL 94/9/EC
appendix X for mechanical equipment in potential hazardous areas

Optional for thermometer without electrical contacts, Marking
II 2 G c or II 2 D c
File No. 35087702 at notified body 0044, TÃœV NORD CERT

Protection according EN 60 529/IEC 529

IP65

Filling liquids

Glycerin, silicone

Weight dry/filled in kg

0,8/1,0
(stem length 100 mm)

1,2/3,0
(stem length 100 mm)

1,0/1,2(stem length 100 mm,capillary 1,5 m)

1,4/3,2(stem length 100 mm,capillary 1,5 m)

Accessories, options

Thermowells, dual scales, magnet spring- or inductive contacts, built in micro switch 1 or 2 SPDT, calibration certification.
Thermowells must be used on all pressure or velocity applications, to protect the stem of thermometer from corrosion and physical damage, and to facilitate removal of the thermometer without disturbing the process.
